  • Rectifiers 4x3kw plus Cabinet_Hybrid System _ABCW POWER LIMITED

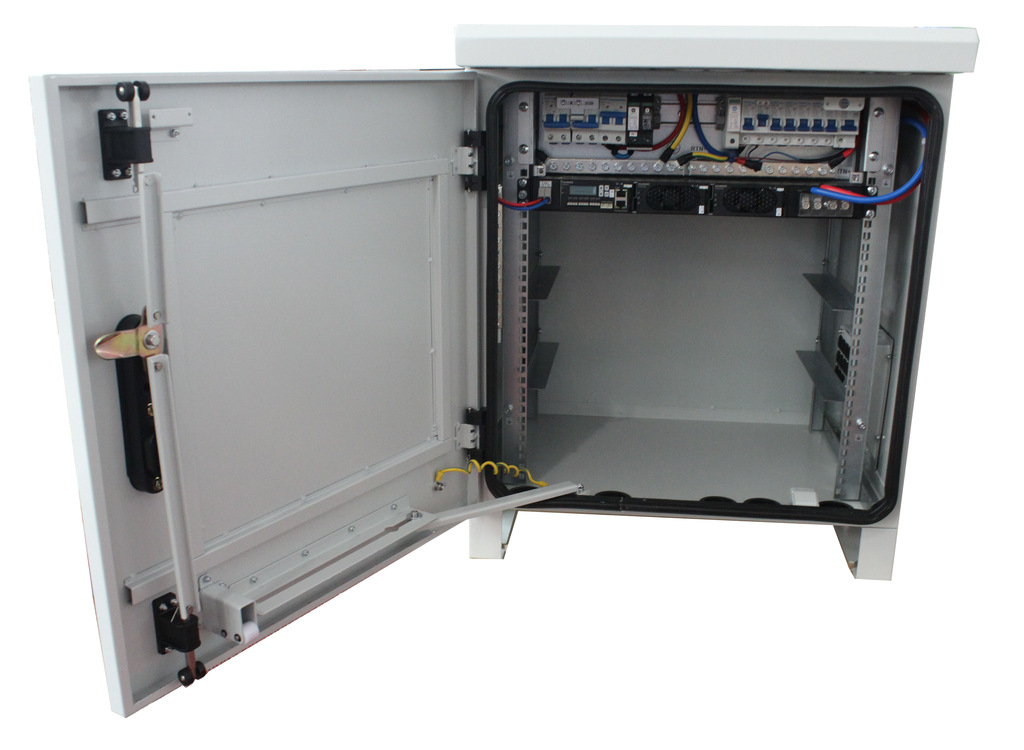

    Rectifiers 4x3kw plus Cabinet

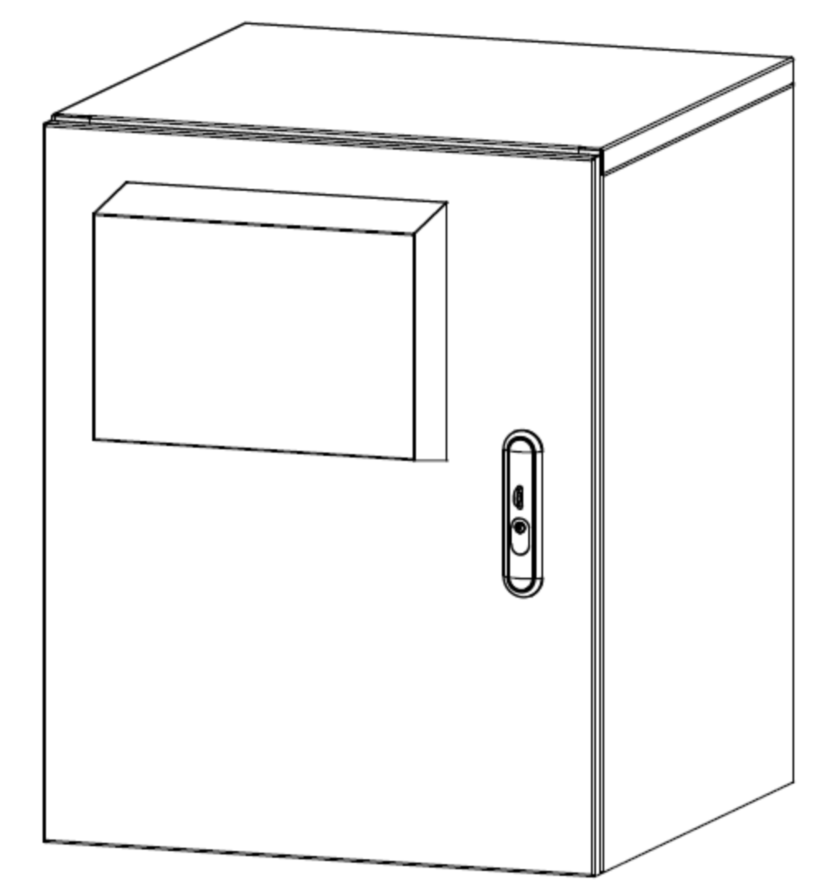

    Cabinet configuration
    The outdoor cabinet configuration is as follows：
    Item Configurations
    Protection Level   IP55
    Temp. Control Mode 2PCS 120*120*38 Fan (DC60V)
    Air filter Protection level: G4
    Sensor Door sensor, temperature sensor
    Lighting /
     Base Height /
    User Space 17U+ 1-tier battery rack. Each battery rack can be installed 1 groups of 5U battery.
    Grounding Bar 1 group 10 pcs M6 grounding bolt
    Frame material Galvanized steel plate， label coating RAL7035
    Wall Panel Material Pre-painted Galvanized Steel + PS
    Lock Mechanical lock
    Max opening angle 115°

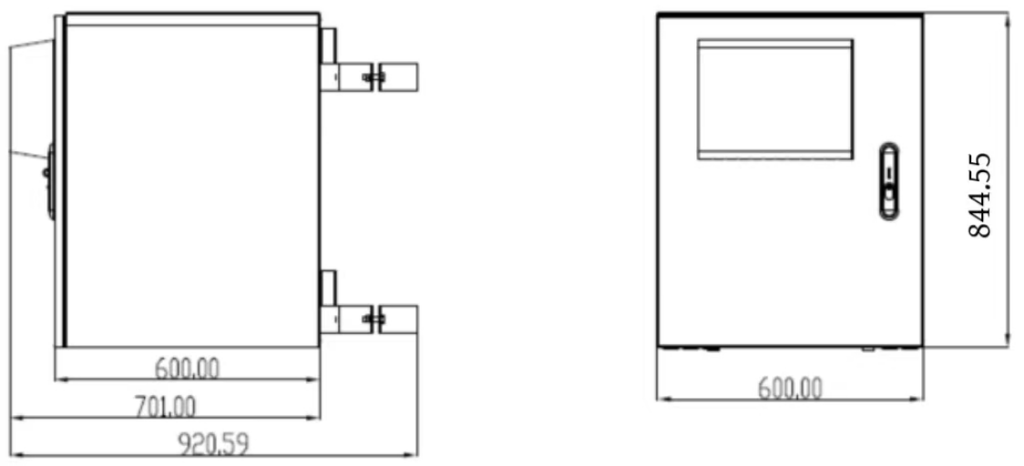

    Inner Dimension W*D*H: 596mm*596.5mm*840.55mm
    External Dimension W*D*H:600mm*701mm*844.55mm
    Switch power 12KW
    Inverter /

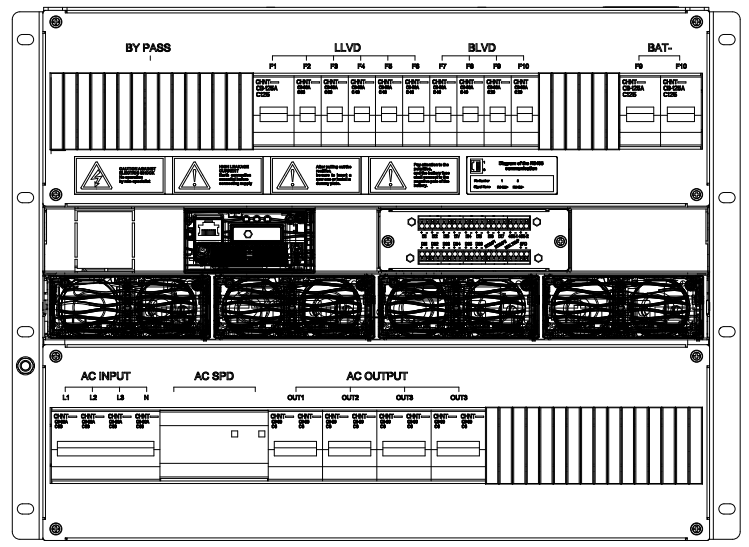

    ​​​​​​​ ETP configuration：
    Item Configurations 配置
    Input system 220 V AC single-phase, three-wire 220V
    AC SPD /
    Maximum Output current 200A
    AC input 1PCS 4P63A Circuit Breaker.
    AC Output /
    Battery route  Two 1-pole 125 A circuit breakers.
    DC output /
    Frequency 45～65Hz
    Power factor ≥0.99
    Efficiency  ≥96%
    Max. power  12KW
