S150-48-4000Introduction
S150-48-4000 is an non-isolated DC/DC converter within MPPT function . It can extract maximum power in real time from the solar panels throughout the day. It features outstanding reliability, efficiency and power density. It is well designed for telecom, network access and data center applications.
DC Input
Voltage 58-170VDC (Nominal: 100VDC) MPPT Efficiency > 0.998 Input Current <42A at 100VDC input <58A at 72VDC input
Features
High efficiency and high power density
98% efficiency and 55.8W/in3 power density.
MPPT efficiency is higher than 99.8% .
High reliability design
One fan front-to-back air flow with latest thermal solution and experienced design .
Excellent EMC performance
Lower interference and excellent susceptibility give module better compatibility.
Global approvals
Meet CE, UL and TUV standard.
OutputVoltage 42-58VDC(Nominal 53.5VDC) Power 4000W Max. Current 80A at 50.2VDC Static Voltage Regulation < 0.5% Dynamic Voltage Regulation < 5% for 10%-90% load, regulation time ≤50ms Ripple < 200mV peak to peak Psophometric < 2mV Startup Time 3-8s Efficiency 98%
Other SpecificationsOperating Temp. -40 ℃ ~ 75 ℃ Storage Temp. -40 ℃ ~ 85 ℃ Relative Humidity < 95% (non-condensing) Altitude 4000m IP Level IP20 Input Protection 3KA lightning protection Output Protection Overvoltage shutdown, short circuit protection, output fuse protection . Isolation 1200VDC-input and output to earth Cooling One fan (front-to-back airflow) Fan Speed Temperature and output current regulated MTBF > 500000 hours (T_ambient: 25 ℃ ) Telcordia SR-332 Issue 1 Acoustic Noise ≤ 55dB at 100VDC input and full load
(T_ambient: < 30 ℃ )Dimensions 107Wx40.8Hx270D(mm) Weight 1.5Kg
Applicable StandardsSafety IEC/EN62109-1
EMCEN55032 Class B (emission)
IEC61000-4-2 (electrostatic discharge)
IEC61000-4-3 (radiated immunity)
IEC61000-4-4 (EFT)
IEC61000-4-5 (surge immunity)
IEC61000-4-6 (conducted immunity)Environment ETSI EN 300 019-2 (-1,-2,-3)

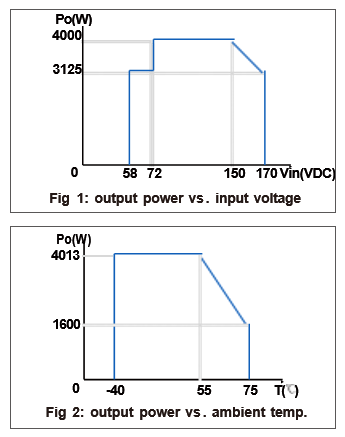

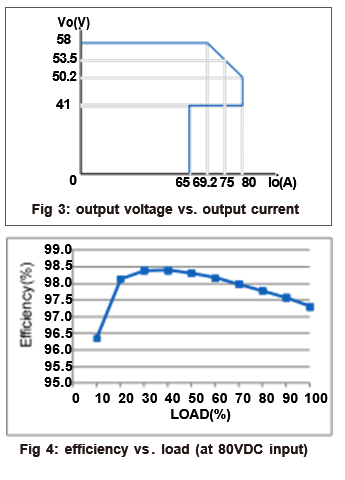

ETSI EN 300 132-2Diagrams
