Telecom Modular
-
B48-48-5800
B48-48-5800 Bidirectional Converter is a non-isolat- ed DC/DC converter which has battery charging and discharging management function. It can automatically adapt to different charging voltages, with fast charging and long service life . Module can achieve the common use of batteries of different types, capacities, and manu- facturers, adapting to the construction and maintenance needs of communication base stations.
Features
High efficiency and high power density
98% efficiency and 80.6W/in3 power density.
Digital control
Digital control, realize excellent monitoring and regulation .
High reliability design
One fan front-to-back air flow with latest thermal solution and experienced design .
Excellent EMC performance
Lower interference and excellent susceptibility give module better compatibility.
Global approvals
Meet CE, UL and TUV standard.
Charging ModeBus Bar (Input) Voltage range 43.2-58VDC Rated voltage 53.5VDC Input Current <105A at 57.6VDC input <115A at 53VDC input Battery (Output) Voltage range 43.2-57.6VDC Rated voltage 48VDC Power 5760W Max. Current 100A Static Voltage Regulation < 0.5% Ripple < 200mV peak to peak Startup Time 3-8s Efficiency 98%
Discharging ModeBattery (Input) Voltage range 43.2-57.6VDC Rated voltage 48VDC Input Current <105A at 58VDC input
<115A at 53VDC inputBus Bar (Output) Voltage range 43.2-58VDC Rated voltage 53.5VDC Power 5830W Max. Current 110A at 53VDC Static Voltage Regulation < 0.5% Line Regulation < 0. 1% Load Regulation < 0.5% Temperature Coefficient < 0.02 % / ℃ Dynamic Voltage Regulation < 5% for 10%-90% load, regulation time ≤50ms Psophometric < 2mV Ripple < 200mV peak to peak Startup Time 3-8s Efficiency 98%
Other SpecificationsOperating Temp. -40 ℃ ~ 75 ℃ Storage Temp. -40 ℃ ~ 85 ℃ Relative Humidity < 95% (non-condensing) Altitude 4000m IP Level IP20 Input Protection 5kA lightning protection Output Protection Overvoltage shutdown, short circuit protection, output fuse protection . Isolation 707VDC-input and output to earth Cooling One fan (front-to-back airflow) Fan Speed Temperature and output current regulated MTBF > 500000 hours (T_ambient: 25 ℃ ) Telcordia SR-332 Issue 1 Acoustic Noise ≤ 55dB at 48VDC input and full load
(T_ambient: < 30 ℃ )Dimensions 107Wx40.8Hx270D(mm) Weight 1.8Kg
Applicable StandardsSafety IEC60950-1, IEC60950-1, IEC60950-1
EMCEN55032 Class B (emission) IEC61000-3-2
IEC61000-3-3
IEC61000-4-2 (electrostatic discharge)
IEC61000-4-3 (radiated immunity)
IEC61000-4-4 (EFT)
IEC61000-4-5 (surge immunity)
IEC61000-4-6 (conducted immunity) IEC61000-4-8
IEC61000-4-11Environment ETSI EN 300 019-2 (-1,-2,-3)
ETSI EN 300 132-2

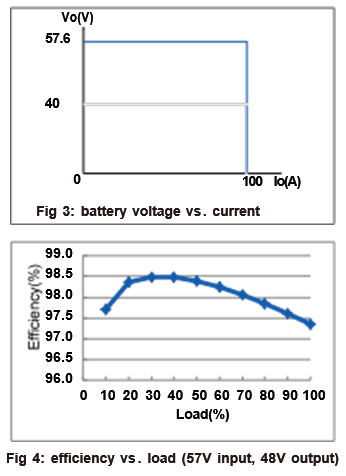

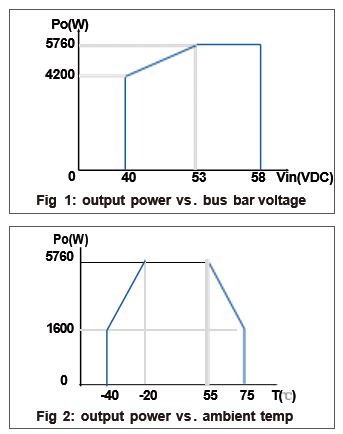

Diagrams(Charging Mode)

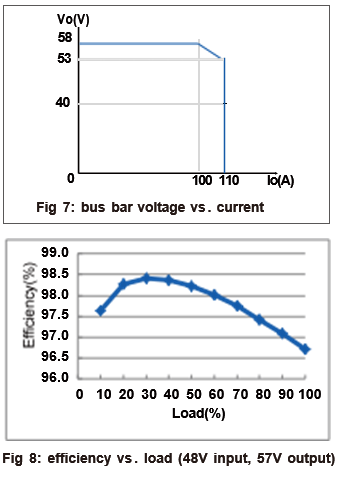

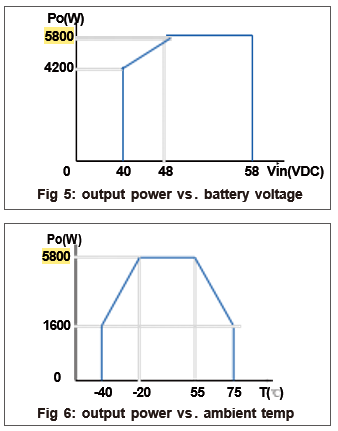

Diagrams(Discharging Mode）
