N48-220-3000Introduction
N48-220-3000 is a digital inverter module . It is specially designed for telecom, network access and energy storage system applications and so on. It can work with outstanding reliability, efficiency and high power density. It support parallel connection, also can be used in 3-phase Y-type system (by monitor setting).
Features
Digital control
Digital primary and secondary control, realizing excellent monitoring and regulation .
High reliability design
One fan front-to-back airflow with latest thermal solution and experienced design .
Excellent EMC performance
Lower interference and excellent susceptibility give the module a better compatibility.
Global approvals
Meet CE standard.
DC InputInput Voltage Range 42-58VDC (Nominal: 53.5VDC) Maximum Input Current 75A
OutputVoltage 200-230VAC
(Nominal 220/230VAC)Rated Current 10.9A at 220VAC, resistive load Frequency 50/60Hz Freqnency Stability ≤1 % Static Voltage Regulation ≤1 % Dynamic Voltage Regulation ≤10% (recovery time ≤60ms) THDv ≤3% , rated resistive load
≤6% , rated non resistive loadLoad Power Factor Requirement ≥0 8 Efficiency ≥94% @53 . 5vin/220vo/50%load Current Sharing ≤5% Rated Output Power 3000VA/2400W (46-58VDC) 2500VA/2000W (other input) 46-58Vin Output
Overload Capacity (Resistive load)105%≤Load≤125% , t> 1min Load >125% , t≤1 s 42-46Vin Output
Overload Capacity105%≤Load≤125% , t> 10min
Other Specifications
Operating Temp. -20 ℃ ~ 75 ℃ Storage Temp. -40 ℃ ~ 85 ℃ Relative Humidity < 90% (non-condensing) Altitude 4000m (Derating >2000m) IP Level IP20 Input Protection Input fuse protection ,
Under/Overvoltage shutdownOutput Protection Under/Overvoltage shutdown, short circuit protection, output fuse
protection,5KA lightning protectionIsolation 4242VDC-input and output 2121VDC-output and earth 707VDC-input and earth Paralleling Up to 12 modules in parallel Fan Speed Temperature and output current
regulatedMTBF > 500000 hours (T_ambient: 25 ℃ ) Telcordia SR-332 Issue 1 Acoustic Noise ≤ 55dB at rated input and output , full load (T_ambient: < 30 ℃ ) Dimensions 107Wx40.8Hx270D(mm) Weight 2.0Kg
Applicable StandardsSafety IEC62477-1, UL62368-1
EMCEN55032 Class B (emission) IEC61000-3-2
IEC61000-3-3
IEC61000-4-2
IEC61000-4-3
IEC61000-4-4
IEC61000-4-5
IEC61000-4-6
IEC61000-4-8
IEC61000-4-11Environment ETSI EN 300 019-2 (-1,-2,-3)
ETSI EN 300 132-2

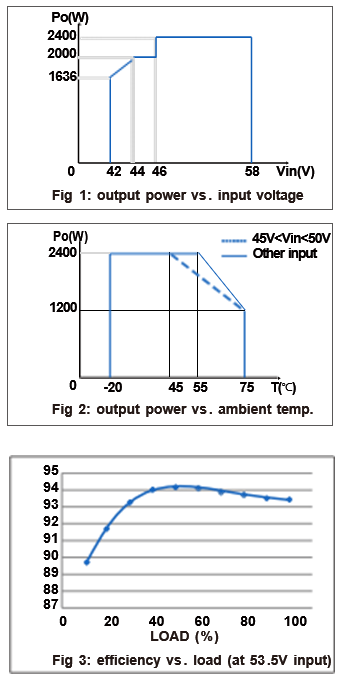

Diagrams
